Industrial 5G Router Dual Gigabit Ports-ZX5206 Specification (PDF)
5G Industrial Router ZX5206 Product specification
Overview
Summary
This router is an industrial IoT communication device, fully compatible with 5G/4G/3.5G/3G/2.5G networks, with industrial-grade protection, wide-temperature and wide-voltage design, it can easily set up high-speed and stable wireless transmission network. Utilizing public NR, LTE network (or VPDN proprietary network) to provide users with wireless long-distance data transmission services.
This router adopts a high-performance industrial-grade 32-bit dual-core communication processor and industrial-grade communication module, with embedded real-time operating system as the software support platform, and at the same time, it provides two RS232/485, one Ethernet LAN, and one Ethernet WAN interfaces, which can connect serial devices and Ethernet devices at the same time, and realize the functions of transparent data transmission and routing.
Field of application
Industrial control, electric power, petroleum, coal mine, finance, communication, public security, heat, meteorology, water conservancy, transportation, municipal and other industries that require remote data transmission.
Product Characteristics
| Adopting high-performance industrial-grade communication module, dual-core 880MHz CPU, 128MB/256MB memory, 16MB flash. |
| Supports 3G (WCDMA/EVDO/TD-SCDMA), 4G (FDD-LTE/TD-LTE), 5G NR |
| Metal housing with protection class IP30 |
| Standard RJ45 (1000M Ethernet) interface with built-in lightning protection |
| Wide voltage and current input: DC5-40V/1A; automatic power-off protection for ultra-high voltage |
| Anti-reverse power supply protection, anti-surge protection; ESD anti-static protection |
| Hardware and software watchdog anti-deadline design, after the router is disconnected from the network, it will automatically power off and restart, to ensure stable and reliable operation of the equipment |
| Network disconnection automatic detection, dialing failure automatic restart, timed restart and other features |
| Serial port pass-through function, through the serial port can enter the command and control mode, control the router and ancillary equipment |
| Supports multiple DDNS dynamic domain name services |
| Port mapping, DMZ hosting and other features |
| Support VPN Server PPTP Server,L2TP Server,OpenVPN Server |
| Support VPN Client PPTP Client, L2TP Client, OpenVPN Client |
| Supports socket server and client modes |
| Supports cloud intranet penetration and other features BTS localization function |
|

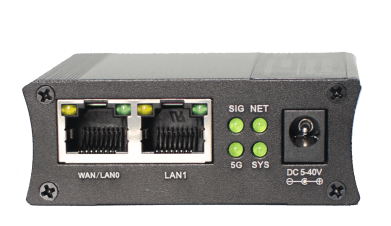

front view

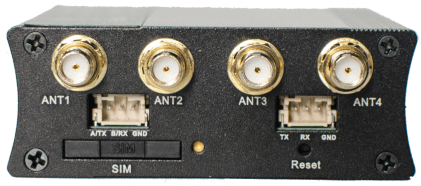

Side view
|
Software functionality
| Web interconnection | |
| Grid Entry | 3G/4G/5G dial-up network with APN, VPDN support, built-in information of hundreds of APNs around the world, the router can be used after inserting a SIM card.
Auto Match Upper Grid |
| Reception Authentication | Supports CHAP/PAP/MS-CHAP/MS-CHAPV2/none. |
| grid system | Support NR/LTE/WCDMA(HSPA+)/TD-SCDMA/EVDO/EDGE/GPRS |
| LAN protocol | Supports ARP, Ethernet, STP |
| WAN protocol | Supports static IP, DHCP, PPPoE, PPTP,L2TP |
| Number of Supporting Users | Cable: 253 |
| web protocol | |
| IP Usage | Supports tcping,ping, traceroute, DHCP server/wireless relay/client, dynamic domain name DDNS, telnet,
SSH, HTTP, HTTPS, TFTP, FTP, SFTP, IPv6 |
| IP routing | Supports static routes, IGMP Proxy |
| TTL | Custom Client Host TTL Values |
| Web Security | |
| Firewalls | Supports full stateful packet inspection (SPI) to protect against denial of service (DDoS) attacks |
| Supports filtering of multicast/ping packets, Access Control Lists (ACLs) | |
| DMZ, MAC Filtering, White List/Black List Access Control | |
| Supports NAT, PAT, DMZ, port mapping, and virtual servers. | |
| AAA | Supports local authentication, Radius |
| data security | Supports L2TP, PPTP, OpenVPN, CA |
| dependability | |
| backup function | Port Backup, 4G/5G, Wired Grid Backup |
| Link in-line inspection | 4G/5G status detection for automatic redialing in case of disconnection or bad signal |
| VPN disconnect redial interval definition, with dialing count control | |
| The WAN side sends a heartbeat detection packet to detect, disconnect and connect automatically. | |
| reset | |
| Grid Bridge Multi-Gate | Supports multi-LAN setup, the router has two gateways (two inside grids) |
| IoT Grid | |
| DTU | Supports TCP, UDP Transparent Transfer Mode, TCP Server Mode, and Command Mode. |
| Second Development | |
| shell script | Self-defining scripts for customized management of the router and related functions |
| System Connectors | The router provides a second development parameter interface (http), such as getting the router status, setting the router related functions and so on. Cell phone for convenience
APP, Wheelchair, Cloud Server Development |
| Web Management | |
| Configuration | Supports local or remote HTTP, HTTPS, Telnet, SSH, and internal grid penetration. |
| Upgrade Method | Supports local or remote WEB, TFTP, FTP, SFTP server, and internal web pass-through remote. |
| Date function | Supports local system date and remote date. Important dates are saved when power is turned off. |
| Supports date power-down preservation |
Description of hardware parameters
| connector | ||
| Ethernet interface | 2* 10/100/1000Mbps Fast Ethernet interfaces, WAN/LAN adaptive (2 LAN in 4G/5G mode) | |
| PIN Terminal | Industrial Serial Interface | RS232/RS485 x 2 industrial terminals
RS232 signal: TXD, RXD, GND RS485 signal: A, B |
| SIM card holder | Drawer mount x 1 | |
| Antenna connectors | SMA externally rotated bore:
3G/4G/5G network: SMA x 4 |
|
| reset button | 1 | |
| mechanical property | ||
| Installation | Guide rail, wall mounted | |
| Overall dimensions | Length, width and height: 70*80*26mm (without antenna connector) | |
| housings | aluminum | |
| protection class | IP30 | |
| Cooling method | Thermally Conductive Wool Shell Heat Dissipation | |
| Weight (g) | 145g | |
| electric power source | ||
| Power connector | DC2.1 header | |
| Power Input | DC 5-40V, anti-reverse connection protection | |
| Reverse polarity protection | be in favor of | |
| Ambient temperature and humidity | ||
| Environmental humidity | 5 ~ 95% (no frosting) | |
| Storage temperature | -40 ~ 85°C | |
| operating temperature | -20°C ~ +75°C | |
| (sth. or sb) else | |
| LED light | SYS system operation indicator:
Blinks 1 time per second to indicate normal system operation A fast flash indicates that the firmware is being upgraded, or the reset button is being pressed to reset the |
| NET extranet connection indicator:
When in 4G/5G mode, a fast flash indicates that 4G/5G is being dialed Long light, indicates successful WAN port internet access Long off, indicates WAN port internet access failure |
|
| SIG 5G signal strength indicator:
SIG light is on long when 5G is above 90% signal strength 5G at 45% – 90% signal strength, SIG light blinks once a second SIG light blinks fast when 5G is below 45% signal strength |
|
| Mode 4G/5G mode signal indicator:
When the resident network is 5G long light Blinks 1 time per second when the resident network is 4G Long extinction when the resident network fails |
|
| physical property | |
| shockproof | IEC 60068-2-27 |
| vibratory | IEC 60068-2-6 |
| fall | IEC 60068-2-32 |
Frequency Comparison Table
| Network | Router Model | Supported Frequency Bands |
| 5G NR: n1*/n28*/n41/n77/n78/ | ||
| n79 | ||
| 5G | (Full Netcom) | LTE-FDD: B1/B3/B5/B7/B8/ |
| LTE-TDD: B34/B38/B39/B40/B41 | ||
| UMTS: B1/B2/B5/B8 |

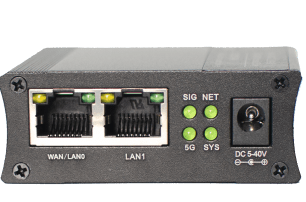

Hardware Interface Description
Standard RJ45 connector with light; in standard router mode, LAN0 can be used as WAN port
Wide voltage design: using 2.1mm round head power connector, internal positive and external negative, voltage input for 5-40V, recommended input power greater than 5W
①SYS system operation indicator:
Blinks 1 time per second to indicate normal system operation
A fast flash indicates that the firmware is being upgraded, or the reset button is being pressed to reset the
② NET extranet connection indicator:
When in 5G mode, a fast flash indicates that 5G is being dialed
Long light, indicates that the WAN port is successfully connected to the Internet Long off, the WAN end of the connection failure
③SIG 5G signal strength indicator:
SIG light is on long when 5G is above 90% signal strength
5G at 45% – 90% signal strength, SIG light blinks 1 second 1
substandard
SIG light blinks fast when 5G is below 45% signal strength
④ 5G resident network indicator:
Long light: registered in SA/NSA 5G 1 second flash: registered in LTE Long off: failed to register network
SMA outer rotating bore: 3G/4G/5G network: SMA x 4 Long press the device to reset
RS232/RS485 x 2 industrial terminals
RS232 signal: TXD, RXD, GND
RS485 signal: A, B

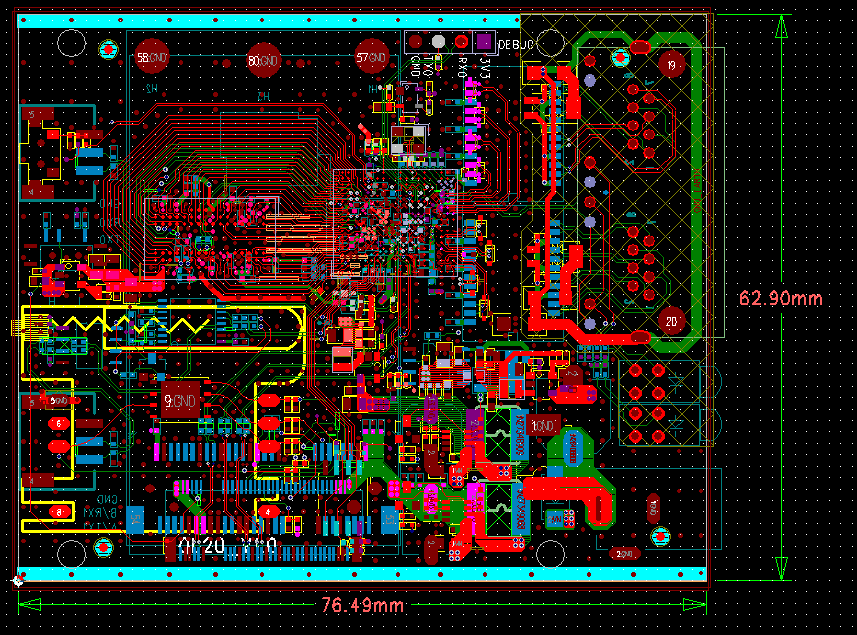

Motherboard
