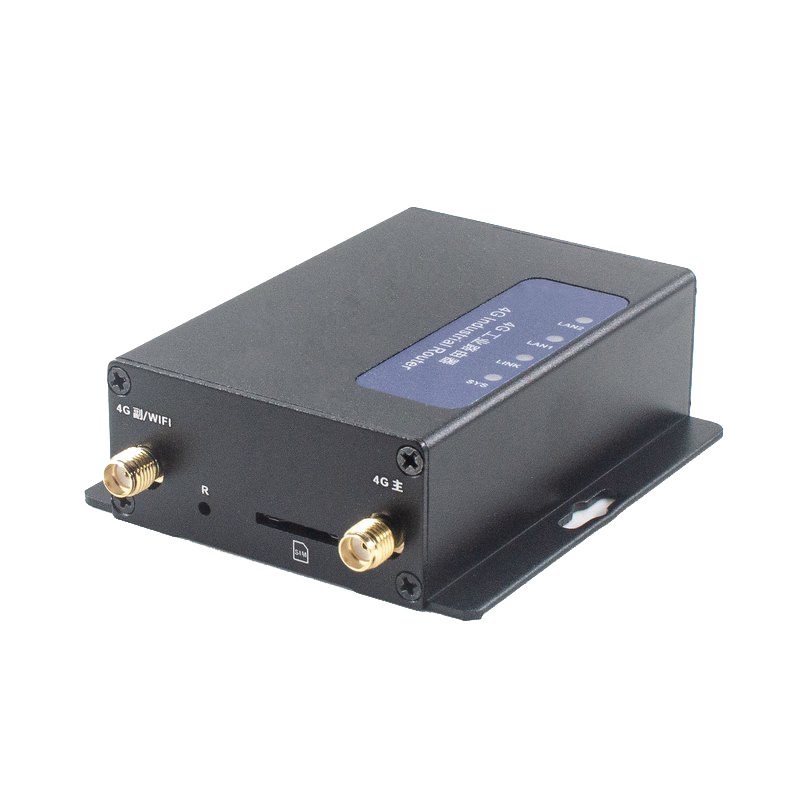

4G Industrial Router ZX4100-4200-ZX4223 （PDF）
4G LTE CAT1 industrial router
High cost-effectiveness of outdoor networking
Product model: ZX4100/4200
HARDWARE:
Main chip MTK7628N
Antenna SMA outer spiral inner hole
External interface LAN port: 2 (LAN1 is WAN/LAN adaptive)
SIM card slot: 1
Antenna interface: 2
Indicator lights: 4
DC power interface: 1 DC2.1 power interface
Reset key: 1
Overall dimensions: 78 * 68 * 25mm (excluding antenna interface)
DC power supply: 12V 1A
Power consumption (current) less than 400mA
Working environment working temperature: -20 ° C~+75 ° C
Storage temperature: -30 ° C~+80 ° C
Humidity: 5%~95%, non condensing
1. Adopting high-performance industrial grade 4G communication modules;
2. Supports 3G (WCDMA/CDMA/TD-SCDMA) and 4G (FDD-LTE/TDD-LTE)
3. Adopting a metal shell with a protection level of IP30;
4. Standard RJ45 (Ethernet) interface;
5. Voltage and current input: DC12V/1A;
6. Software and hardware watchdog anti crash design, after the router is disconnected from the network, it will automatically power off and restart, ensuring stable and reliable operation of the equipment outdoors;
7. Automatic detection of network disconnection, automatic restart upon dialing failure, and timed restart functions;
8. Support multiple DDNS dynamic domain name services;
9. Port mapping, DMZ host and other functions;
10. Support VPN servers PPTP Server and L2TP Server;
11. Support VPN clients PPTP Client and L2TP Client;
software function
Internet access method: 3G/4G dial-up DHCP/Static IP/PPPoE
The operating system requires Windows XP/7/10, Linux 2.6 and above
MAC OS: 10.3.7 and above
Internal Network (LAN) Internal Network Settings: The gateway address of the router can be changed
DHCP server: Supports up to 253 LAN IP address assignments, and can also manually set fixed IP addresses.
External Network (WAN) External Network Settings: Supports multiple network types: IPoE (dynamic), IPoE (static), PPPoE, PPTP, L2TP.
IPV6 Settings
Port forwarding: can redirect access information to a fixed port, achieving remote access to lower level computers.
Isolation Zone (DMZ): When the open port of the virtual server that needs to be set is uncertain, it can be set as a DMZ host
Dynamic Domain Name Resolution (DDNS): allows you to access the internal network through domain names online even without a static IP address.
General firewall settings: Start the firewall to protect the internal network from hacker intrusion
Website filtering: prohibit access to certain websites
MAC access control: capable of controlling specific network card addresses (MAC) for network access behavior.
Network service filtering: used to filter specific network services.
USB application 3G/4G Mode: refers to the 3G/4G settings, which can be set to specify APN or VPDN, or manually select the network.
WLAN Security Mode Open System
WPA-PSK
WPA2-PSK
WPAPSK
WPA2PSK (i.e. WPA-PSK and WPA2-PSK hybrid mode)
WPA1WPA2 (i.e. WPA and WPA2 mixed mode)
